ERLA TECHNOLOGIES: Products – Adbluepack service stations

Mobile service stations

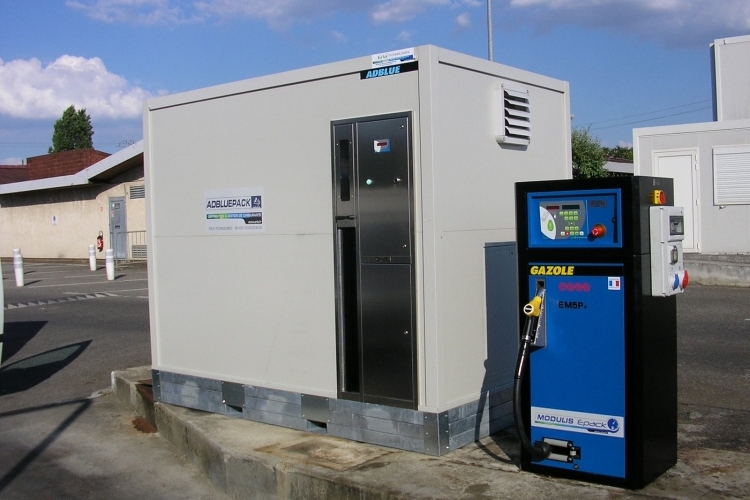

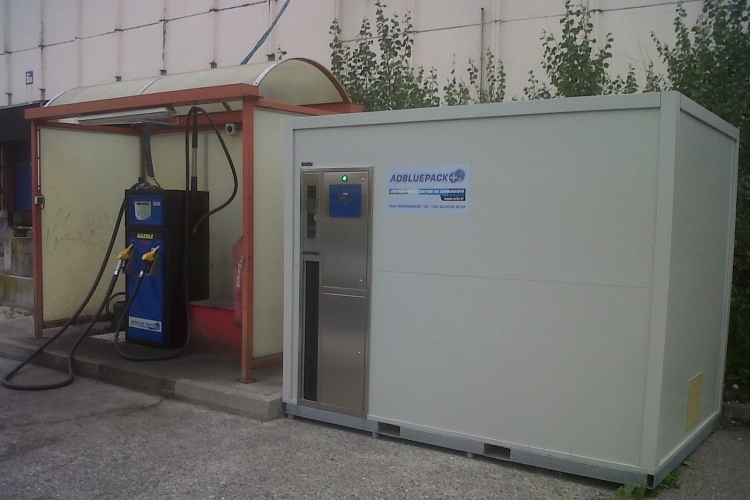

Mobipack Adbluepack service stations

Your compact solution for Adblue® storage and distribution



Technical characteristics

Supporting structure:

  • FE430B hot-dipped galvanized steel

Walls & roof:

  • Thermal insulation panels containing a layer of self-extinguishing polyurethane resin, double- walled, pre-painted steel
  • Colour: white/Thickness: 25mm/Thermal insulation aluminium sheet metal/Thickness: 3mm + (1.5mm)

Transport:

  • Empty tank, via forklift

Module includes:

  • 1 forced ventilation unit with automatic control
  • 1 real-time tank level gauging device + LCD indicator + visual and audible high/low level alarm
  • 1 incorporated 1kW reheating system (low temperature) 1 mechanical stainless steel anti-splash device
  • 1 safety electrovalve
  • 1 leak detection device
  • 1 automatic Elaflex ZVA Adblue® nozzle
  • 1 5.5-metre Adblue®-specific hose
  • 1 automatic recall stainless steel hose winder, 1 external tank ventilation grill
  • 1 tank compartment lighting device
  • 1 TODO self-sealing DN50 filling adaptor 1 service hatch secured with key lock
  • 1 stainless steel self-priming pump, flowrate 40 litres per minute 1 gear counter, +/- 1.5% accuracy
  • 1 volume display + 1 distribution report kit to be connected to management device + 1 general volume totalizer
  • 1 IP55 electrical control panel with electrical protection (thermic + differential)
  • 1 CE certificate

Tank materials:

  • High density linear polyethylene

Tank capacity:

  • 3 000, 5 000, 11 600 litres

Container power supply:

  • 230V AC

Maximum power:

  • Max 3 kW

Pump motor power supply:

  • 230V AC/0.74 kW

Reheating:

  • 230V AC/2 000W

Ventilation:

  • 230V AC/100W

Electronics:

  • 24V AC/50W

Operating temperature:

  • -20°C/+40°C
